Perfect Panel Lift by MULTUS: how-to videos, setup and safety instructions
Watch it in action
How-to videos
See the Perfect Panel Lift set up and carrying full panels with one person. New to the tool? Start with the lift-and-carry video.
How to lift and carry
Hook the panel, lift with your legs, and carry it on your own.
Meet the Perfect Panel Lift
A quick introduction to the tool and the jobs it's built for.
Carry strap demo
The panel lift strap in use, start to finish.
Before your first lift
Lock the handle onto the strap
The patented comfort-grip handle hooks onto any of the strap's numbered daisy-chain loops and locks in place with its peg.
-

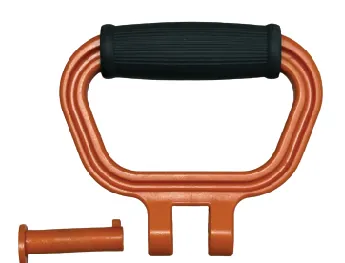

Step 1
Peg out
Remove the peg from the handle, then hook the handle onto your chosen daisy-chain loop.
-

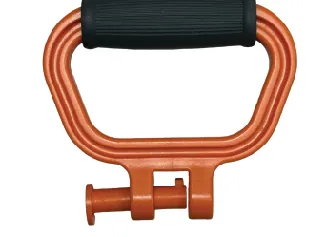

Step 2
Peg halfway in
Insert the peg halfway into the handle's peg legs to begin securing the position.
-

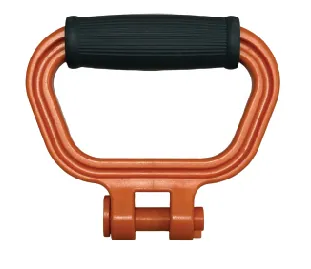

Step 3
Peg fully in
Push the peg fully through the second peg leg, then rotate it down to the locked position.
Not sure which loop to use? Picking the loop is step 4 of the carry guide: choose the one that gives you the best lift and balance point.
6 easy steps · One person · Less bending
How to lift and carry a panel
-

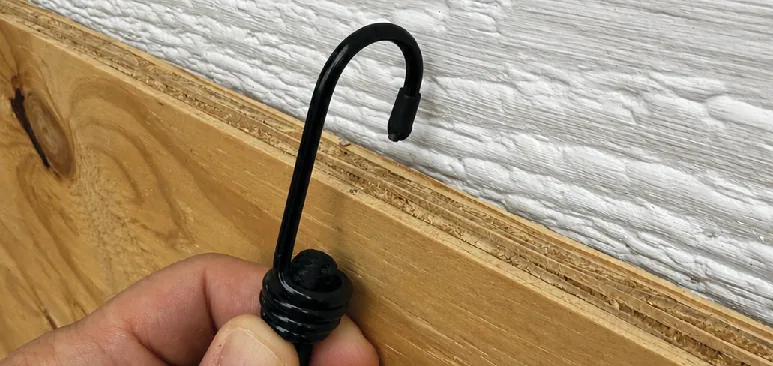

Attach the bungee
Hook the bungee over the top edge of the panel to hold the tool upright during setup.
-

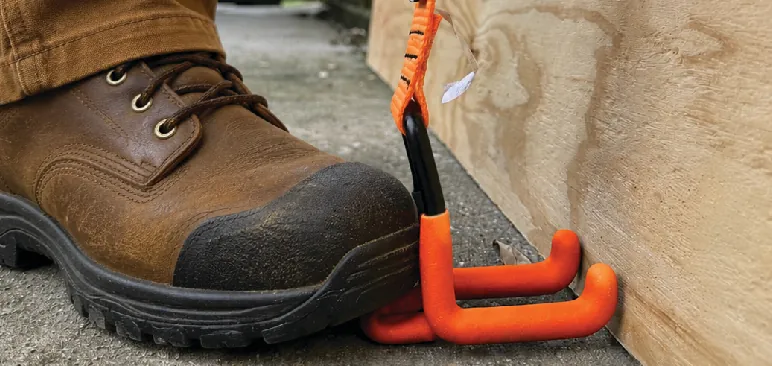

Position and step on the hook
Slide the foot-stabilizing hook under the bottom edge of the panel, then step on the kick plate to secure it.
-

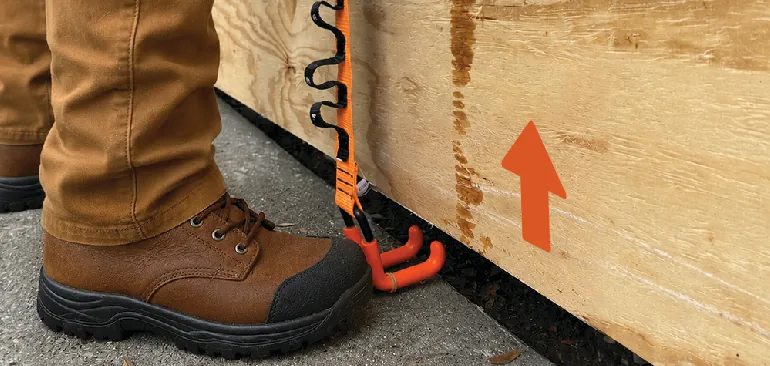

Raise the panel
Raise the panel and seat its bottom edge securely in the hook.
-

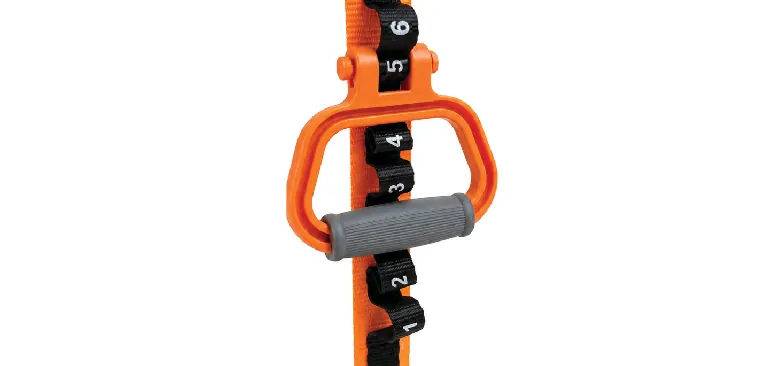

Dial in your grip
Move the handle to the numbered loop that gives you the best lift and balance point.
-

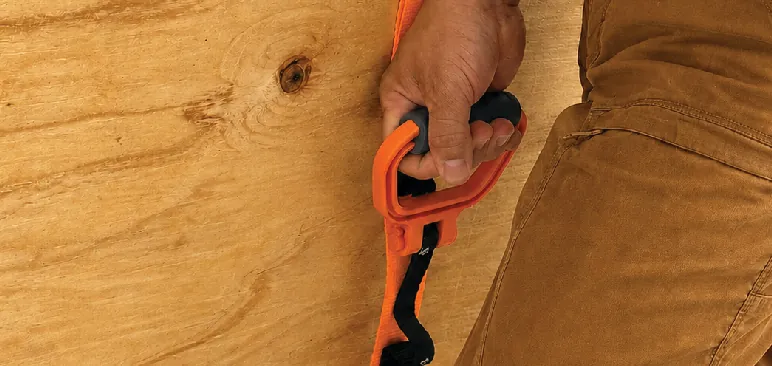

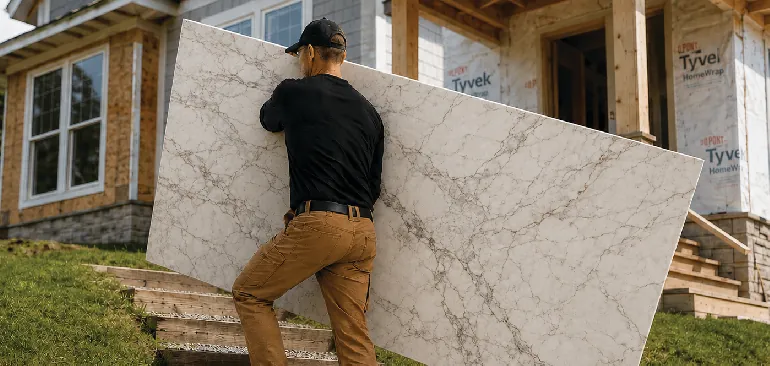

Lift and carry
Bend your knees, lift with your legs, and carry while keeping control.
-
Move carefully
Keep your path clear. Use caution on stairs, ramps, inclines and uneven surfaces.
Built for pros

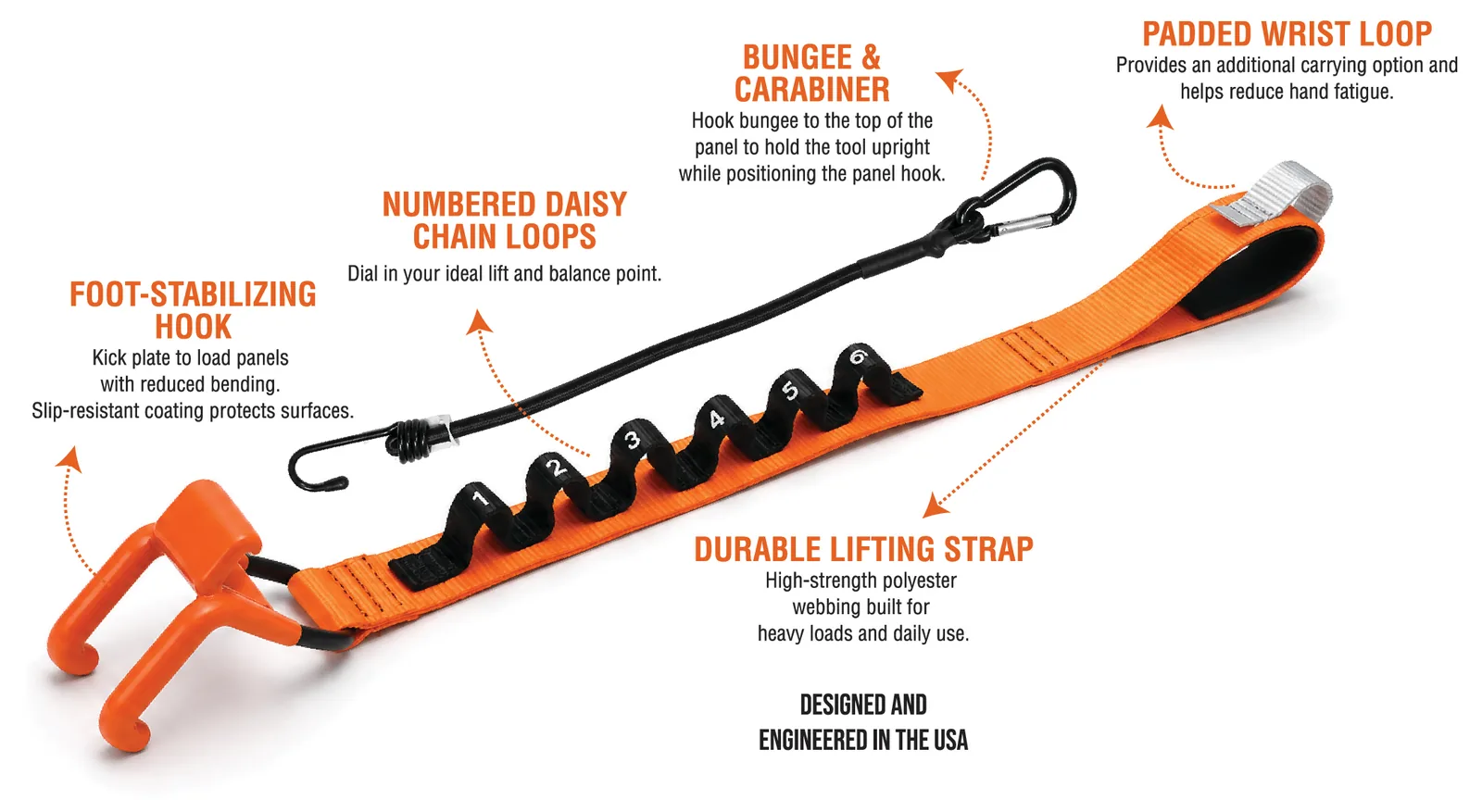

Know your Panel Lift

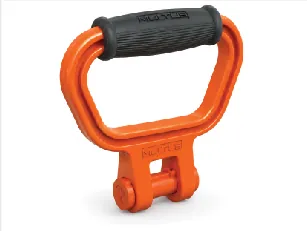

Patented comfort-grip handle
Patented locking peg design. Secure grip, all-day comfort.

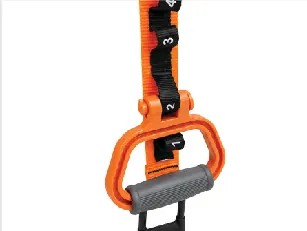

Numbered daisy-chain loops
Dial in your ideal lift and balance point.

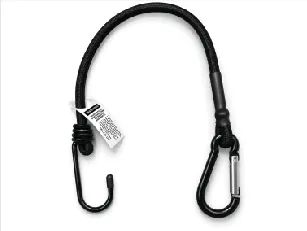

Bungee and carabiner
Holds the tool upright while you position the hook. Clip it to your belt loop or the panel between loads.

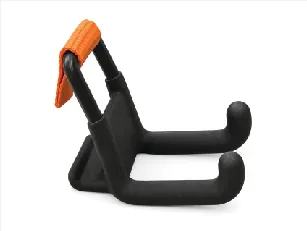

Foot-stabilizing hook
2″ receiving area and kick plate, so you load panels with less bending.

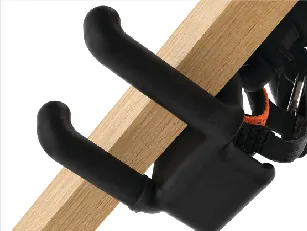

Slip-resistant hook
Rubber surface keeps the panel secure in the hook and protects surfaces.

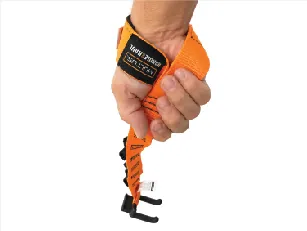

Padded wrist loop
An extra way to carry that helps reduce hand fatigue.
- Polyester webbing
Durable lifting strap
High-strength polyester webbing built for heavy loads and daily use.
- 140LBWorking load limit
140 lb capacity
Handles plywood, drywall, doors and more, up to 140 lb.
Plywood to appliances
Move anything. Anywhere.

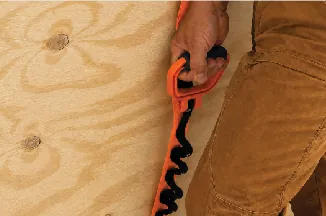

Plywood
Drywall
Doors

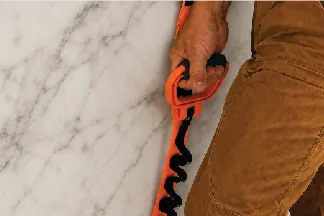

Countertops
Furniture
Stairs

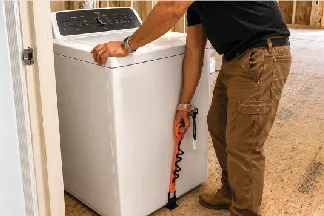

Appliances
Read before every lift
Safety
Warning
- Fully engage the hook and lock the peg before lifting.
- 140 lb (63.5 kg) maximum. Get help if needed.
- Keep clear of pinch points. Use caution on stairs and inclines.
- The bungee is for positioning only.
- Inspect before use. Do not use if damaged.
- Not for overhead lifting or for supporting people.
Instructions, buying and help
Get the Perfect Panel Lift
Instruction sheet
The two-page insert from the box, sized for letter paper. PDF, 0.7 MB.
Where to buy
Order the Perfect Panel Lift and the rest of the MULTUS Handle and Haul line.
Questions
Need help with your Panel Lift? Reach the MULTUS team.
MULTUS, LLC2932 Lime Street, Suite 202
Metairie, LA 70006
